Description

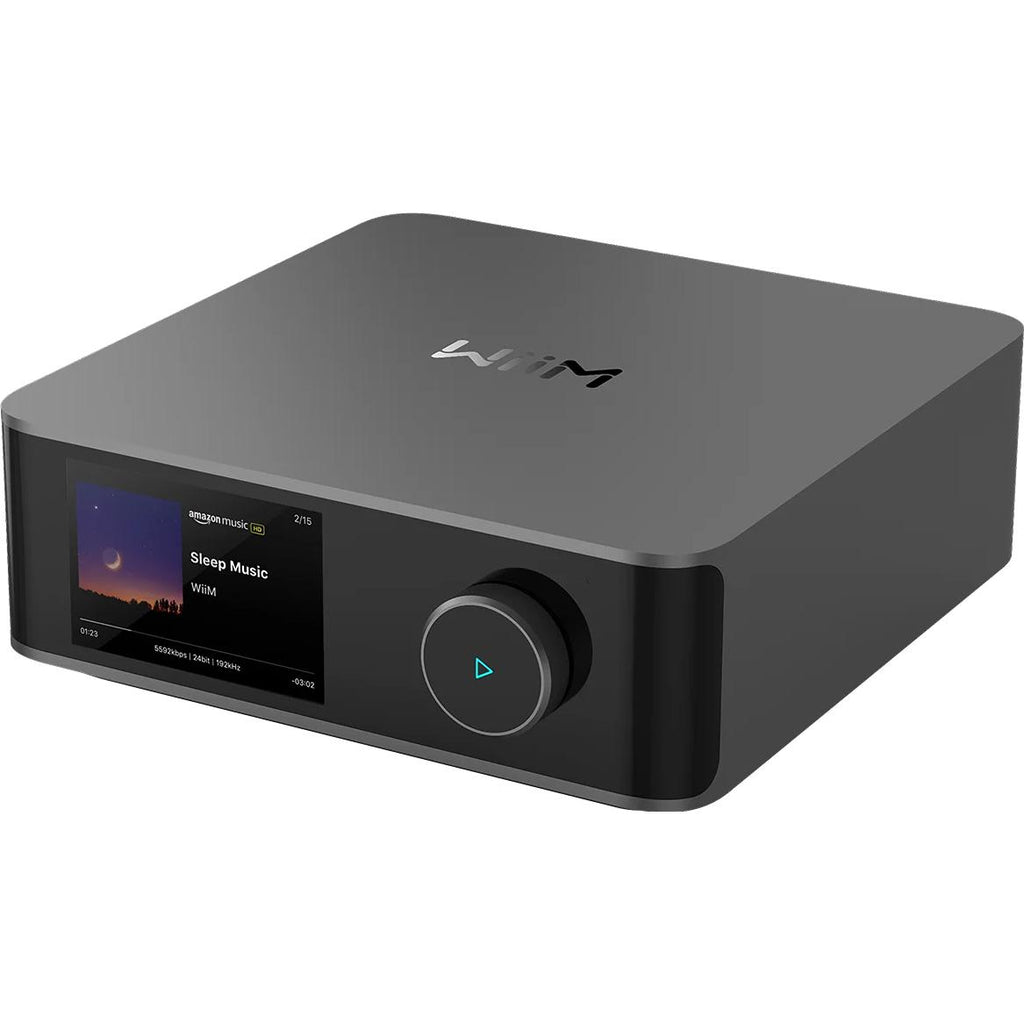

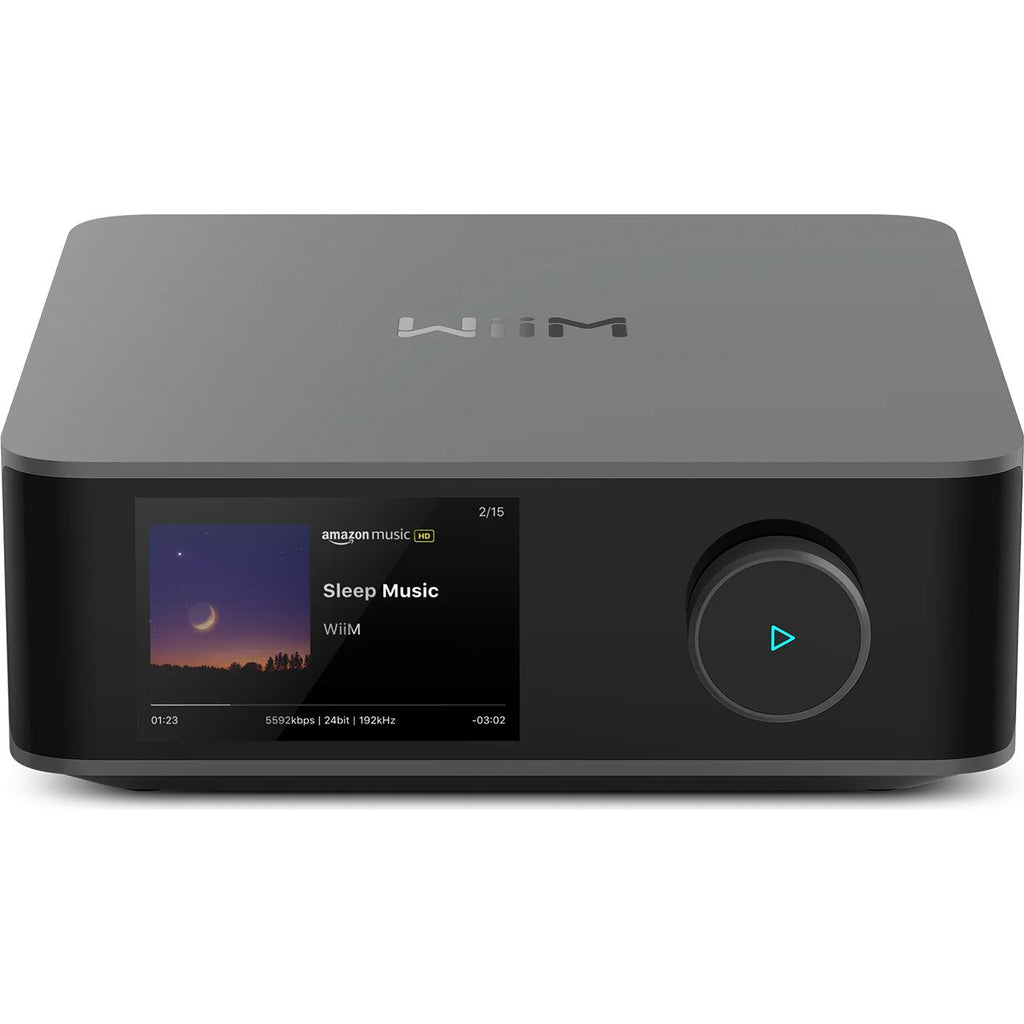

Unleash Studio-Quality Sound. Meet the WiiM Amp Ultra – our most advanced streaming amplifier yet. Built for music lovers, home theater buffs, and smart home fans, it delivers stunning 100W per channel (8 ohm) with ultra-low distortion, pushing high-fidelity audio to every corner of your space. Whether it’s vinyl, Spotify, or cinematic surround sound—you’ll hear it like never before.
Specifications
General
Sound Channels
2
Power Output
100 W per channel @ 8 ohm, 200 W per channel @ 4 ohm
Total Harmonic Distortion
0.005 %
Frequency Range (Hz)
20Hz – 20kHz ± 0.5dB
Additional Information
• Space Grey finish
• Amplifier Technology: Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N): 0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR): 120dB
• Damping Factor: 94
• Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
• Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
• Dynamic Range: 120dB for high-resolution sound
• Input-Specific EQ: Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
• EQ Tools: 24 Preset EQ Profiles, 10-Band Graphic & Parametric EQ, Built-in Room Correction with mic-guided acoustic tuning
• Streaming Protocols: WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA, LMS, Roon Ready (Certification Pending)
• Multi-Room Audio: Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing: Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode: Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets: Quick access to favorite playlists, sources, or routines
• Alarm Clock: Configurable time, repeat schedule, and music source
• Touch Display - Screen: 3.5" glass-covered capacitive touchscreen
• Touch Display - Functions: Playback controls, album art, EQ adjustment, input switching, Queue view, preset access, VU meters, time/date in standby, Custom wallpapers and onboarding setup (OOBE), Supports firmware updates directly via screen
• Chassis: Precision-machined unibody aluminum for durability & heat dissipation
• Dimensions: 7.9" x 2.9" x 7.9" (200 x 75 x 200 mm)
• Weight: 5.4 lbs (2.45 kg)
• Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
• Amplifier Technology: Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N): 0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR): 120dB
• Damping Factor: 94
• Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
• Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
• Dynamic Range: 120dB for high-resolution sound
• Input-Specific EQ: Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
• EQ Tools: 24 Preset EQ Profiles, 10-Band Graphic & Parametric EQ, Built-in Room Correction with mic-guided acoustic tuning
• Streaming Protocols: WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA, LMS, Roon Ready (Certification Pending)
• Multi-Room Audio: Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing: Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode: Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets: Quick access to favorite playlists, sources, or routines
• Alarm Clock: Configurable time, repeat schedule, and music source
• Touch Display - Screen: 3.5" glass-covered capacitive touchscreen
• Touch Display - Functions: Playback controls, album art, EQ adjustment, input switching, Queue view, preset access, VU meters, time/date in standby, Custom wallpapers and onboarding setup (OOBE), Supports firmware updates directly via screen
• Chassis: Precision-machined unibody aluminum for durability & heat dissipation
• Dimensions: 7.9" x 2.9" x 7.9" (200 x 75 x 200 mm)
• Weight: 5.4 lbs (2.45 kg)
• Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
Network
Bluetooth
Built-In
Information
• Wireless Connectivity: Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
• Wired Network: Ethernet (100Mbps): Standard RJ45 port
• Wired Network: Ethernet (100Mbps): Standard RJ45 port
Inputs/Outputs
Information
• Analog Inputs: 1x RCA Stereo: Connects to external audio sources like CD players or PCs
• Digital Inputs: 1x Optical (TOSLINK) – Up to 192kHz/24-bit, HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
• Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire connections)
• USB Audio Output: Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
• Sub Output: Dedicated output for powered subwoofers (RCA Mono)
• Digital Inputs: 1x Optical (TOSLINK) – Up to 192kHz/24-bit, HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
• Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire connections)
• USB Audio Output: Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
• Sub Output: Dedicated output for powered subwoofers (RCA Mono)
Accessories
Included
• User Guide *1
• Power Cable *1
• RCA Cable *1
• Optical Cable *1
• HDMI Cable *1
• Remote 2 *1
• Banana Plugs *4
• Power Cable *1
• RCA Cable *1
• Optical Cable *1
• HDMI Cable *1
• Remote 2 *1
• Banana Plugs *4
Dimensions
Width
7.87 inch(es) / 19.99 cm
Height
3 inch(es) / 7.62 cm
Depth
8.3 inch(es) / 21.08 cm
Weight
5.4 lb(s) / 2.45 kg
