Description

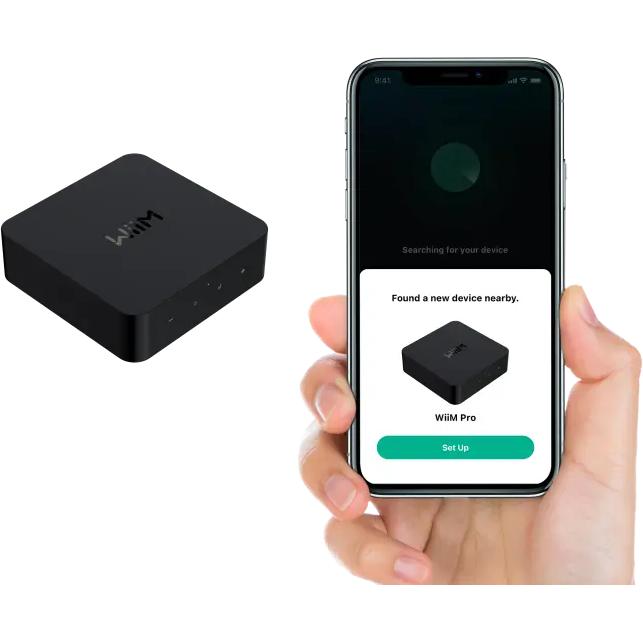

Diverging from the norm of resampling to set sample rate and bit depth, WiiM Pro stands out by delivering unaltered audio up to 192kHz, 24-bit quality. That's the same as an artist's recording in the studio. The advanced TI PCM5121 DAC produces a remarkable 106 dB SNR and an impressive -92dB THD+N performance. WiiM Pro will pop up automatically in the WiiM Home app.Follow the in-app guide and start streaming music in less than 2 minutes.
Specifications
General
Additional Information
• Internal DAC IC: TI Burr-Brown PCM5121
• SNR (built-in DAC): 102dB
• THD+N (built-in DAC): 0.009%(-81dB)
• Network: 02.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi, 10/100M Ethernet
• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• Protocol: AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready
• Streaming Services in App: Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.
• Power Input: USB Type-C, requires 5V, 1.5A or higher
• Bundled adapter: 5V, 2A
• LED: Three color status LED — Red, Green and White
• Button: Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset
• SNR (built-in DAC): 102dB
• THD+N (built-in DAC): 0.009%(-81dB)
• Network: 02.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi, 10/100M Ethernet
• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• Protocol: AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready
• Streaming Services in App: Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.
• Power Input: USB Type-C, requires 5V, 1.5A or higher
• Bundled adapter: 5V, 2A
• LED: Three color status LED — Red, Green and White
• Button: Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset
Network
Bluetooth
Built-In
Information
Bluetooth 5.1
Inputs/Outputs
Information
• Audio Input: 1 x Analog RCA Line input, 1 Vrms, 48kHz/24-bit,SNR 91dB, 1 x SPDIF in Optical, up to 192kHz/24-bit
• Analog Audio Output: 1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output, 1 x Digital Coaxial output, up to 384kHz/32-bit
• Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.
• Analog Audio Output: 1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output, 1 x Digital Coaxial output, up to 384kHz/32-bit
• Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.
Accessories
Included
• WiiM Voice Remote
• Premium RCA Cable for Line Out
• Premium RCA Cable for Line Out
Dimensions
Width
5.5 inch(es) / 13.97 cm
Height
1.6 inch(es) / 4.06 cm
Depth
5.5 inch(es) / 13.97 cm
Weight
72.75 lb(s) / 33 kg
