Description

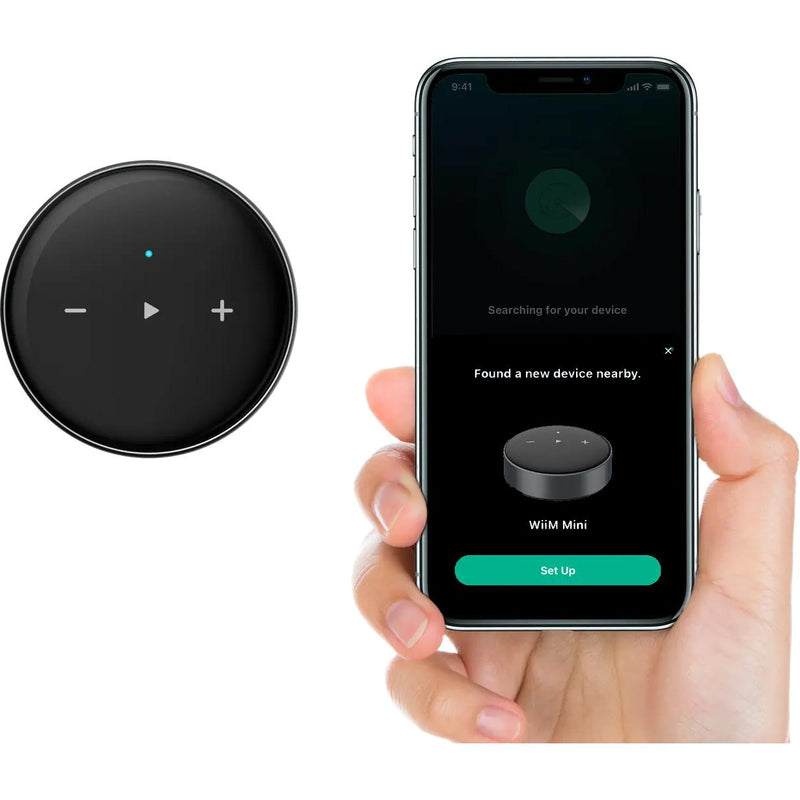

WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio. The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance. WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide and start streaming music in less than 2 minutes.
Specifications
General
Additional Information
• Voice control
• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• Wi-Fi: Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
• Bluetooth: Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)
• Line in: 1Vrms
• Line in to Line out: Power Output=2Vrms, THD+N Ratio=0.009%, SNR=102dB, Crosstalk=-106dB, Dynamic Range=96dB
• BT in to Line out: Power Output=2Vrms, THD+N Ratio=0.009%, SNR=102dB, Crosstalk=-106dB, Dynamic Range=96dB
• Power Supply: 5V,1A
• Three color status LED - Red, Green and White
• Capacitive touch - Play/Pause, Volume+, Volume-
• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
• Wi-Fi: Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
• Bluetooth: Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)
• Line in: 1Vrms
• Line in to Line out: Power Output=2Vrms, THD+N Ratio=0.009%, SNR=102dB, Crosstalk=-106dB, Dynamic Range=96dB
• BT in to Line out: Power Output=2Vrms, THD+N Ratio=0.009%, SNR=102dB, Crosstalk=-106dB, Dynamic Range=96dB
• Power Supply: 5V,1A
• Three color status LED - Red, Green and White
• Capacitive touch - Play/Pause, Volume+, Volume-
Network
Bluetooth
Built-In
Wi-Fi
Yes
Dimensions
Width
2.72 inch(es) / 6.9 cm
Height
0.94 inch(es) / 2.4 cm
Depth
2.72 inch(es) / 6.9 cm
Weight
8.82 lb(s) / 4 kg
