Description

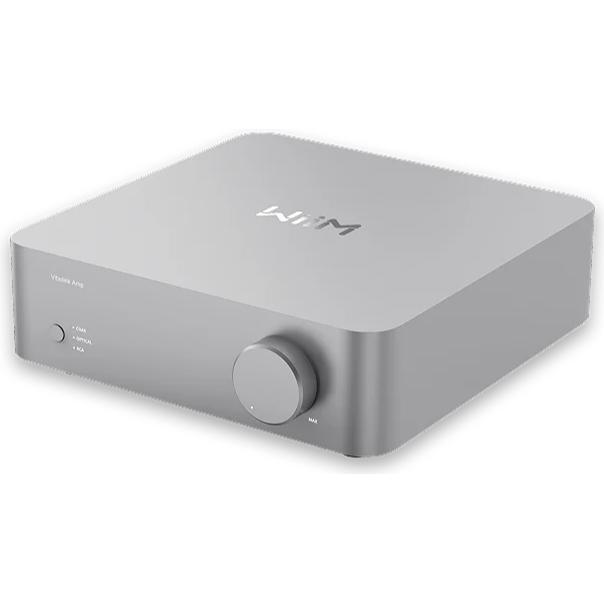

Power. Precision. Pure Performance. Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8? and 200W per channel at 4?, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.
Features
High-Fidelity Audio with Premium Components
Equipped with a premium ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, revealing details often lost in standard amplifiers. Supporting high-resolution audio up to 192kHz/24-bit, it preserves the integrity of every recording while enhancing dynamic range for a richer, more immersive listening experience.
Post Filter Feedback Technology
At the core of the WiiM Vibelink Amp’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Advanced Thermal Management
High-power amplification generates heat, but the WiiM Vibelink Amp stays cool under pressure with advanced thermal management:
Specifications
General
Power Output
100W per channel at 8ohm (stereo)
Total Harmonic Distortion
0.0005 %
Frequency Range (Hz)
20Hz – 20kHz +- 0.5dB
Technologies
Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
Additional Information
• Signal-to-Noise Ratio (SNR): 120dB
• Impedence Range: 3~8 ohms
• Premium DAC: ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
• Dynamic Range: 120dB for high-resolution sound
• Pure Analog Input: No ADC conversion, maintaining signal integrity
• PCM up to 192kHz/24-bit (through digital sources)
• Volume Knob: Adjusts volume
• LED Indicator: Three 4-color RGBW LED indicates source input and device status
• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
• Impedence Range: 3~8 ohms
• Premium DAC: ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
• Dynamic Range: 120dB for high-resolution sound
• Pure Analog Input: No ADC conversion, maintaining signal integrity
• PCM up to 192kHz/24-bit (through digital sources)
• Volume Knob: Adjusts volume
• LED Indicator: Three 4-color RGBW LED indicates source input and device status
• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
Inputs/Outputs
Information
• Analog Inputs: 1x RCA Stereo (Line-In, pure analog signal path)
• Digital Inputs: 1x Optical (TOSLINK) – Up to 192kHz/24-bit, 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
• Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire connections)
• Trigger & Power Management: 12V Trigger In: Auto power-on with compatible devices, Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
• Digital Inputs: 1x Optical (TOSLINK) – Up to 192kHz/24-bit, 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
• Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire connections)
• Trigger & Power Management: 12V Trigger In: Auto power-on with compatible devices, Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Composites Audio Inputs (Analog)
1
Optical Digital Outputs
2
Accessories
Included
• Use Guide x1
• Power Cable x1
• RCA Cable x1
• Optical Cable x1
• Banana Plugs x4
• Power Cable x1
• RCA Cable x1
• Optical Cable x1
• Banana Plugs x4
Dimensions
Width
7.9 inch(es) / 20.07 cm
Height
2.6 inch(es) / 6.6 cm
Depth
8.4 inch(es) / 21.34 cm
Weight
2.05 lb(s) / 0.93 kg
