Description

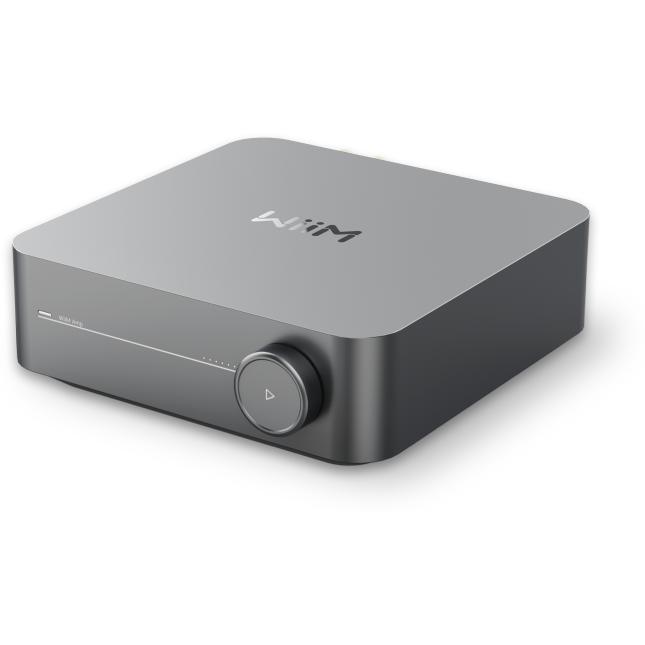

Housed in a sleek aluminum shell, the compact WiiM Amp offers versatile placement options. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification. A custom-designed heatsink ensures optimal thermal performance. Don't let its compact design fool you – it packs 60 Watts per channel at 8 ohms, and 120 Watts per channel at 4 ohms. Transform your passive speakers including floor-standing, architectural, outdoor, or bookshelf, into smart audio powerhouses.
Specifications
General
Additional Information
• Finish: Aluminum
• Controls: Volume knob, play/pause, and more
• LED: Status, Volume
• Power: 60 Watts/channel at 8 ohms, 120 Watts/channel at 4 ohms
• Home Theatre Audio Formats: Stereo PCM (Dolby Digital and DTS are not supported)
• Audio Format: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
• EQ: 10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ
• Power Supply: 100-240V 50/60Hz AC Power
• Supported Streaming
• ProtocolAirPlay 2, Chromecast, Spotify Connect,
• TIDAL Connect, Alexa Cast, DLNA, Roon Ready
• Controls: Volume knob, play/pause, and more
• LED: Status, Volume
• Power: 60 Watts/channel at 8 ohms, 120 Watts/channel at 4 ohms
• Home Theatre Audio Formats: Stereo PCM (Dolby Digital and DTS are not supported)
• Audio Format: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
• EQ: 10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ
• Power Supply: 100-240V 50/60Hz AC Power
• Supported Streaming
• ProtocolAirPlay 2, Chromecast, Spotify Connect,
• TIDAL Connect, Alexa Cast, DLNA, Roon Ready
Network
Bluetooth
Built-In
Information
• IEEE 802.11 b/g/n/ac Dual band, 10/100 Mbps LAN
• Bluetooth: BT 5.1, A2DP Sink and Source, AVRCP, BLE HID
• Bluetooth: BT 5.1, A2DP Sink and Source, AVRCP, BLE HID
Inputs/Outputs
Information
• Speaker Output: Stereo or dual mono sound
• Audio Input: HDMI Arc, Optical, Line
• Audio Output: Passive Speaker Terminal, Subwoofer Output
• Audio Output Quality: SNR - 98 dB, THD+N - 0.0025% (-92 dB)
• Subwoofer Output: Auto-detecting cable insert, user-adjustable 30-250 Hz crossover
• Audio Input: HDMI Arc, Optical, Line
• Audio Output: Passive Speaker Terminal, Subwoofer Output
• Audio Output Quality: SNR - 98 dB, THD+N - 0.0025% (-92 dB)
• Subwoofer Output: Auto-detecting cable insert, user-adjustable 30-250 Hz crossover
Dimensions
Width
7.48 inch(es) / 19 cm
Height
2.48 inch(es) / 6.3 cm
Depth
7.48 inch(es) / 19 cm
Weight
4.1 lb(s) / 1.86 kg
