Description

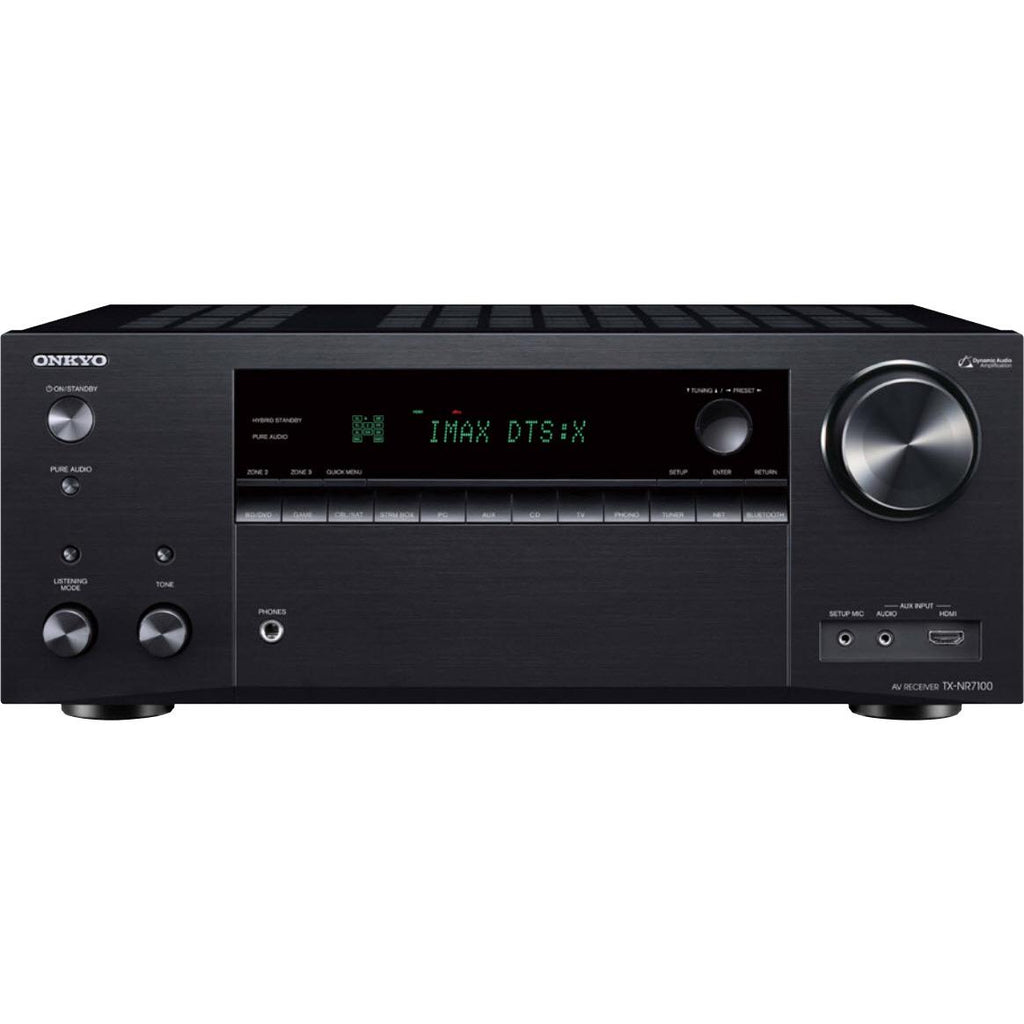

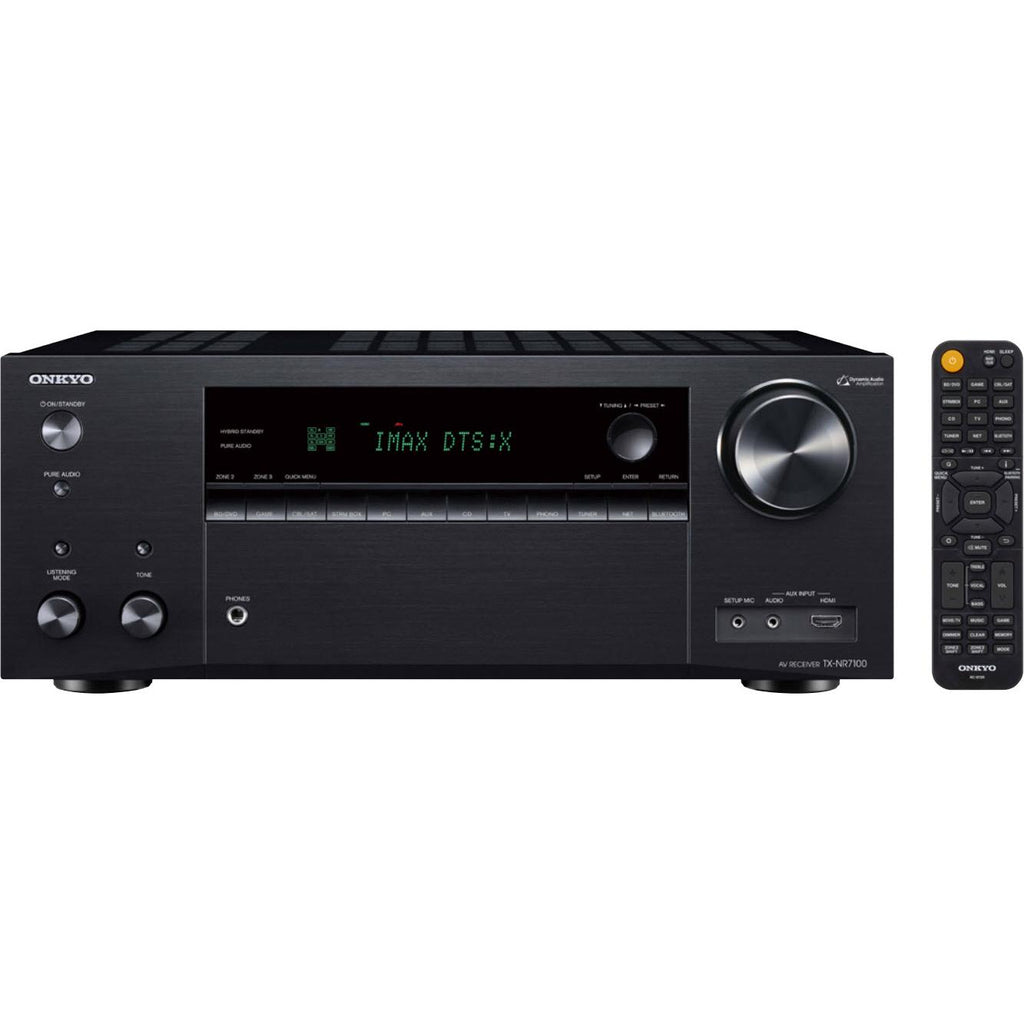

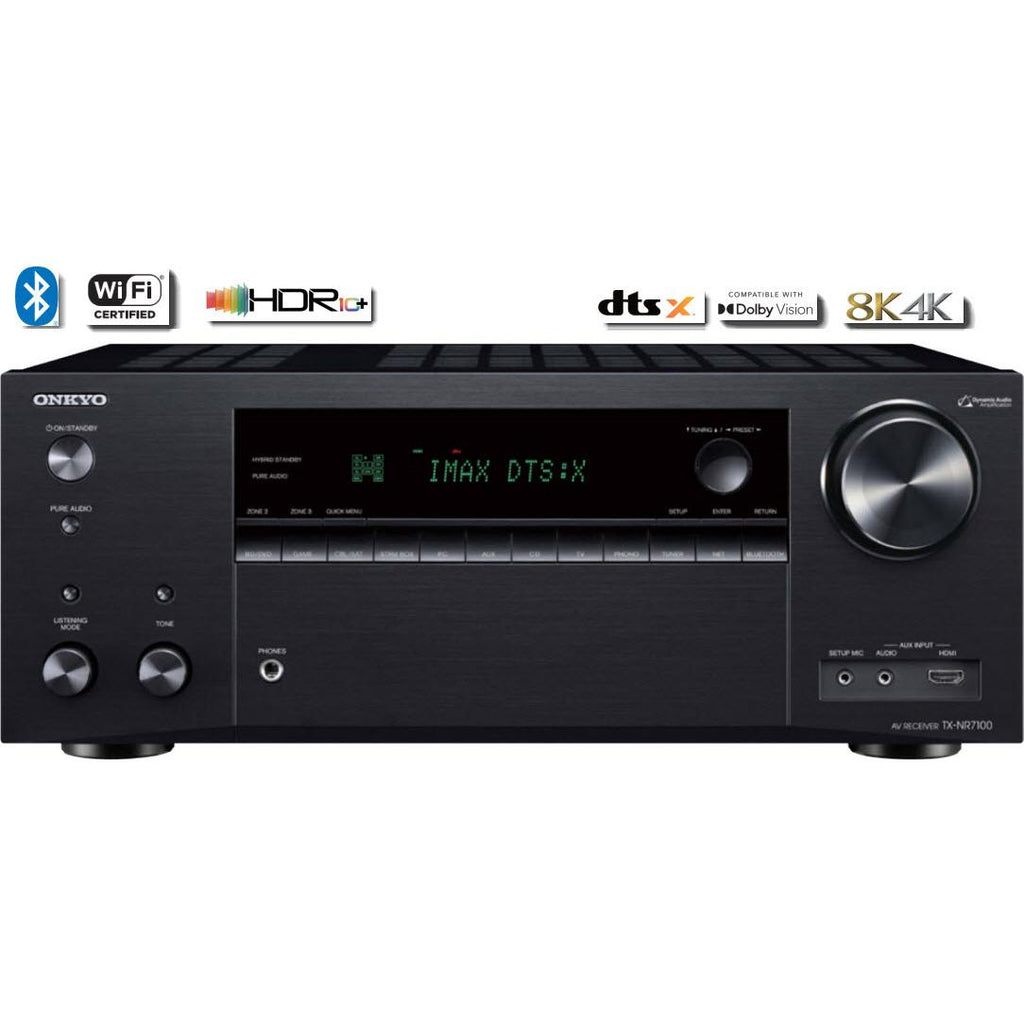

Onkyo Smart 9.2-Channel THX Certified Network AV Receiver. Turn your home into a living media sanctuary with 9.2-channel Dynamic Audio Amplification (DAA) supporting 3D surround-sound and powered multi-zone audio together with the SMART AV Receiver™ suite for effortless voice-controllable entertainment via a Google Assistant or Amazon Alexa enabled device. HDMI® supports 8K/60p and dynamic HDR (including HDR10+ and Dolby Vision™) passthrough to compatible TVs, projectors, or gaming monitors connected via eARC-ready Main Out. Be overwhelmed by the hyper-realistic THX® Certified Select reference experience, and explore the master-quality IMAX® Enhanced film library. Unique functions such as Front-to-Height stereo switching for ambient background listening, DSP vocal/dialog enhancement, and practical GUI functions simplify everyday operation. Whether you’re gaming, watching a favorite TV series, or streaming Hi-Res Audio, a richer emotional life awaits inside the Onkyo signature sound.
Features
SMART AV Receiver™ multi-room audio streaming
SMART AV Receiver shares audio around your home. It includes Amazon Music HD* , Pandora®, Spotify®, TIDAL, Deezer, and TuneIn, and works with Hey Google or Alexa. Share entertainment via Works with Sonos, AirPlay 2, DTS Play-Fi®, and Chromecast built-in. * Amazon Music HD is supported via DTS Play-Fi.
Works with Sonos
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Connect. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app.
Chromecast built-in™ works with Hey Google
Stream music from your smartphone, laptop, or PC to the receiver via Chromecast built-in and control playback from Chromecast-enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac or Windows® PC, or Chromebook™. Cue, play, and control audio just by using your voice.
Works with Alexa
Alexa lets you use your voice to control the A/V receiver by speaking commands through an Alexa built-in device. Whether you want to listen to music, radio stations, or podcasts, all you have to do is ask. It also supports multi-room music* played on multiple devices. * Multi-room music may require a firmware update
Dolby Atmos and DTS:X – celebrate a new world of sound
Dolby Atmos and DTS:X translate 3D soundtracks from the studio mixing desk to your living room. Sounds are no longer tied to specific channels, and are free to move around and above your audience, placing them at the heart of the action
THX® Certified Select theater-reference sound
THX Certified Select guarantees the same reference volume and sound quality of a commercial theater in rooms where the screen-to-seat distance is about 12 ft. (3.5 m). THX® certified receivers must pass 2,000 bench-tests in 75 categories.
TX-NR6100 & TX-NR7100- New enhancements for gamers
Transform your playtime with 3D surround-sound and gain the winning edge with new gamer-friendly features defined in HDMI 2.1. VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. ALLM (Auto Low Latency Mode) optimizes latency from source to screen while QFT (Quick Frame Transport) limits lag for a smoother experience.
Discover the IMAX® experience
IMAX® Enhanced uses DTS:X® technology optimized for the IMAX signature experience and reproduces the full dynamic range of IMAX theatrical mixes. IMAX Mode delivers lMAX Enhanced content as the filmmakers intended. IMAX Enhanced films are available to stream or own on Ultra HD Blu-ray™.
Welcome to the 8K Ultra HD experience
Features defined in HDMI® 2.1 specification enable 8K/60p video passthrough to your compatible display. As well as HDR10 and HLG, HDR10+ and Dolby Vision™ formats optimize brightness, contrast, and color scene-by-scene or frame-by-frame. All HDMI terminals support HDCP 2.3, while eARC on Main Out passes encoded multichannel audio (including Dolby Atmos® or DTS:X®) from your compatible TV’s tuner, video streaming apps, or connected media players to the AVR for amplification. QMS (Quick Media Switching) for movies and video eliminates the delay that can result in a blank screen before content is displayed
Enjoy 3D sound from any speaker layout
Dolby Atmos Height Virtualizer delivers 3D sound through any listener-level speaker layout. The technology works independently or with the Dolby Surround® upmixer to create a 3D sound-field.
Dirac Live® Room Correction
Dirac Live analyzes your audio system and listening environment by examining acoustic data measured by microphone and detecting deficiencies. It corrects both the timing and amplitude aspects of sound colorations using a mixed-phase correction filter throughout the listening area, not just a particular zone. Dirac Live automatically calibrates sound in your room using a smartphone or tablet* application and setup mic. Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience. * Device must be connected to the internet and the same network as your AVR.
5 GHz/2.4 GHz dual-band Wi-Fi® supports the 802.11ac standard
A powerful quad-core SoC (System on a Chip) performs multiple processing tasks at once. It evolves network functions and supports the 802.11ac (2x2 MIMO) standard for stable multi-room audio streaming. * Note: some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels.
Bi-directional Bluetooth® wireless technology
This AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD
Clearer dialog at the touch of a button
Vocal Enhancer solves the problem of inaudible dialog in movies and TV programs by using DSP algorithms to elevate vocal frequencies in the soundtrack. The effect level can be raised or lowered using keys on the remote control.
Three-Zone Whole Home Audio
Manage playback in up to three rooms using the Onkyo Controller app. This 9.2-ch AVR has a Zone 2 DAC supporting amplified D/A audio distribution (including HDMI, SPDIF, and NET) via Zone 2 and Zone 3 speaker posts, and supports layouts including 5.2.2-ch Main + Zone 2 or 5.2-ch + Zone 2 + Zone 3.
Note: Zone 3 supports analog/NET only. Zone 2 HDMI audio available on inputs 1–3. HDMI and SPDIF support 2-ch PCM audio signals only
Note: Zone 3 supports analog/NET only. Zone 2 HDMI audio available on inputs 1–3. HDMI and SPDIF support 2-ch PCM audio signals only
Relax with Stereo Assign Mode
Stereo Assign Mode switches playback from Front to Height, Surround, or Surround Back speakers depending on your layout. Ideal for ambient background listening.
Connections for custom installations
A 12 V trigger output syncs operation with an external component, such as a power amp, while IR input connects an IR repeater. Ethernet supports IP control for home automation and AVR configuration via PC browser. RS-232C control and OSD output are supported. Rack-mount kit is optionally available
Specifications
General
Sound Channels
9.2
Power Output
• Amplifier Section:
• 220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
• 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Dynamic power:
• 250 W (3 ohms, Front)
• 220 W (4 ohms, Front)
• 130 W (8 ohms, Front)
• 220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
• 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Dynamic power:
• 250 W (3 ohms, Front)
• 220 W (4 ohms, Front)
• 130 W (8 ohms, Front)
Total Harmonic Distortion
0.08 %
Frequency Range (Hz)
• Amplifier Section:
• 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
• Tuning frequency range:
• FM 87.5 MHz–107.9 MHz
• AM 530 kHz–1,710 kHz
• 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
• Tuning frequency range:
• FM 87.5 MHz–107.9 MHz
• AM 530 kHz–1,710 kHz
Video Compatibility
8K
Additional Surround Formats
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technologies
• Hi-Res Audio playback via network and USB including DSD256, DSD128, DSD64 (DSDIFF/DSF) and 192 kHz/24-bit FLAC, ALAC, WAV (RIFF), and AIFF*7
• SACD playback via HDMI (2.8 MHz 2-ch/multichannel)
• IMAX Enhanced certified for immersive signature sound by DTS:X
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Direct Mode and Pure Audio Mode
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technologies
• Hi-Res Audio playback via network and USB including DSD256, DSD128, DSD64 (DSDIFF/DSF) and 192 kHz/24-bit FLAC, ALAC, WAV (RIFF), and AIFF*7
• SACD playback via HDMI (2.8 MHz 2-ch/multichannel)
• IMAX Enhanced certified for immersive signature sound by DTS:X
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Direct Mode and Pure Audio Mode
Technologies
• SMART AV Receiver multi-room platform with integrated streaming services, voice assistant support, and control via remote apps
• Fast quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Works with Sonos for the Sonos Home Sound System with Sonos app*8 control
• Works with Alexa supporting multi-room music*9
• Works with Hey Google and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi® multi-room audio via Onkyo Music Control App*8
• Control and manage media playback with the Onkyo Controller app*8
• Roon Tested certification for the Roon Core
• IP Control for setup via PC and integration into a home automation system
• Fast quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Works with Sonos for the Sonos Home Sound System with Sonos app*8 control
• Works with Alexa supporting multi-room music*9
• Works with Hey Google and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi® multi-room audio via Onkyo Music Control App*8
• Control and manage media playback with the Onkyo Controller app*8
• Roon Tested certification for the Roon Core
• IP Control for setup via PC and integration into a home automation system
Additional Information
• Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line), 3.5 mV rms/47 k-ohms (Phono MM
• Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out), 200 mV rms/2.2 k-ohms (Zone 2/Zone B line-out)
• Signal-to-noise ratio 106 dB (Line, IHF-A), 80 dB (Phono, IHF-A)
• Speaker impedance 4–16 ohms
• FM/AM preset memory 40 stations
• Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out), 200 mV rms/2.2 k-ohms (Zone 2/Zone B line-out)
• Signal-to-noise ratio 106 dB (Line, IHF-A), 80 dB (Phono, IHF-A)
• Speaker impedance 4–16 ohms
• FM/AM preset memory 40 stations
Network
Bluetooth
Compatible

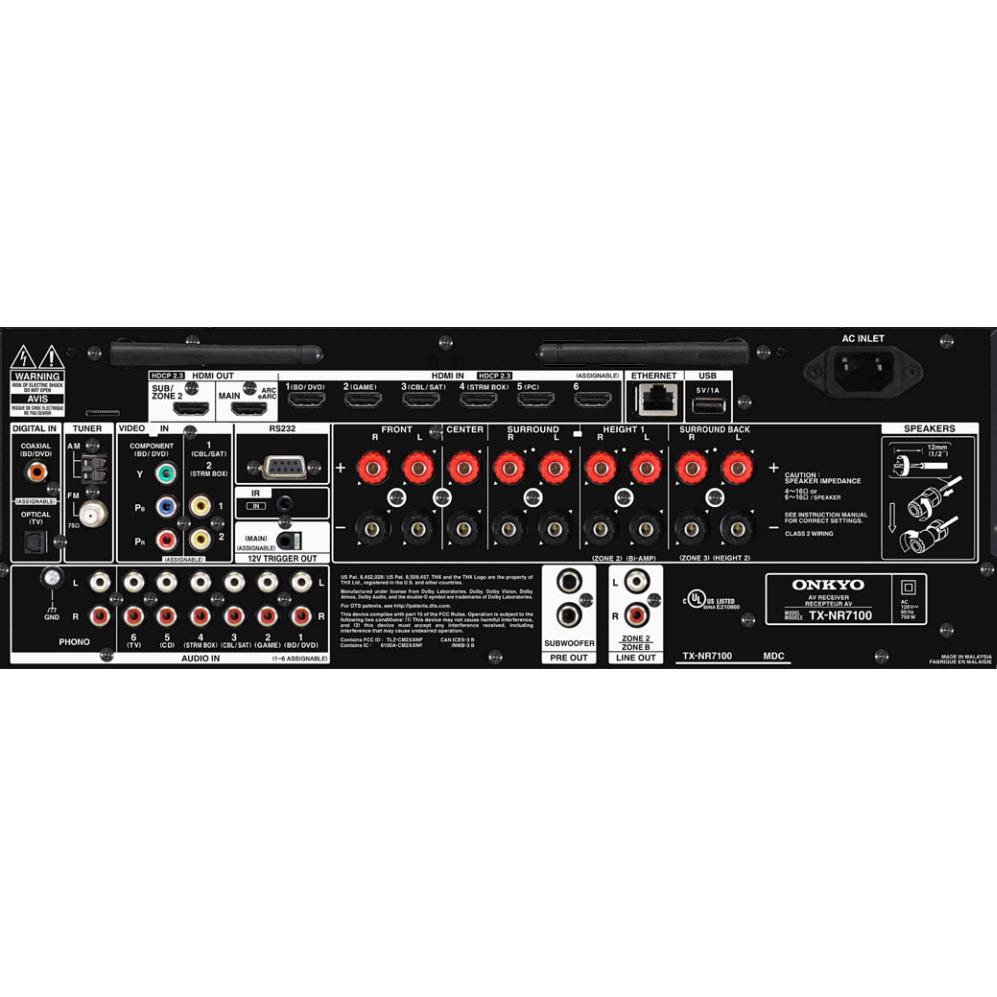

Inputs/Outputs
Information
• 7 HDMI inputs (1 front), 2 outputs (Main Out [eARC], Sub/Zone 2 Out)
• 1 component video input (assignable)
• 2 composite video inputs (assignable)
• 2 digital audio inputs (optical and coaxial, assignable)
• 6 analog RCA audio inputs (assignable)
• 1/8" (3.5 mm) mini-stereo analog input (front)
• 1 phono input with built-in MM phono equalizer
• 1/8" (3.5 mm) mic input for room acoustic correction setup
• 1/4" (6.35 mm) headphone jack
• 2 subwoofer pre-outs
• Zone 2/Zone B analog RCA line-level out
• 9 banana-plug-ready speaker binding posts
• 10BASE-T/100BASE-TX Ethernet terminal for network connection
• USB input (DC 5 V/1 A) for audio playback (rear)
• RS-232C serial input and IR input for infrared repeaters
• 12 V trigger output (Main, 100 mA, assignable)
• AC inlet for detachable IEC power cord
• 1 component video input (assignable)
• 2 composite video inputs (assignable)
• 2 digital audio inputs (optical and coaxial, assignable)
• 6 analog RCA audio inputs (assignable)
• 1/8" (3.5 mm) mini-stereo analog input (front)
• 1 phono input with built-in MM phono equalizer
• 1/8" (3.5 mm) mic input for room acoustic correction setup
• 1/4" (6.35 mm) headphone jack
• 2 subwoofer pre-outs
• Zone 2/Zone B analog RCA line-level out
• 9 banana-plug-ready speaker binding posts
• 10BASE-T/100BASE-TX Ethernet terminal for network connection
• USB input (DC 5 V/1 A) for audio playback (rear)
• RS-232C serial input and IR input for infrared repeaters
• 12 V trigger output (Main, 100 mA, assignable)
• AC inlet for detachable IEC power cord
Accessories
Included
• Power cord
• Indoor FM antenna
• AM loop antenna
• Speaker setup microphone

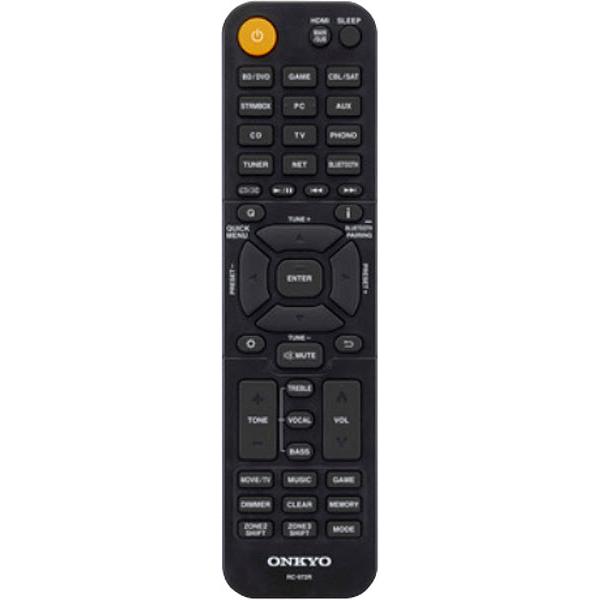

• Remote controller
• AAA (R03) batteries x 2
• Indoor FM antenna
• AM loop antenna
• Speaker setup microphone
• Remote controller
• AAA (R03) batteries x 2
Dimensions
Width
17.13 inch(es) / 43.5 cm
Height
6.83 inch(es) / 17.35 cm
Depth
14.94 inch(es) / 37.95 cm
Weight
22.91 lb(s) / 10.39 kg
Shipping Dimensions
Width
21.02 inch(es) / 53.4 cm
Height
10.43 inch(es) / 26.5 cm
Depth
18.43 inch(es) / 46.8 cm
Weight
29.81 lb(s) / 13.52 kg
UPC
UPC#
889951003496
