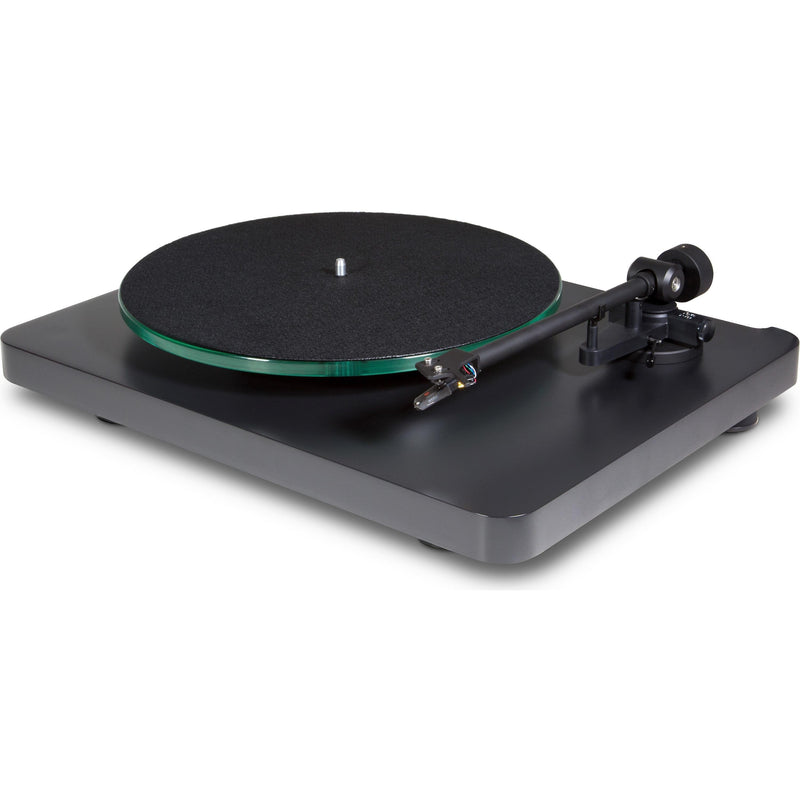

NAD 2-Speed Turntable C 558

In Stock
NADSKU: C558

Price:
Sale price$901.00
$899.00 + $2.00 Eco-fees
Features
Sophisticated Technology C558
• When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.

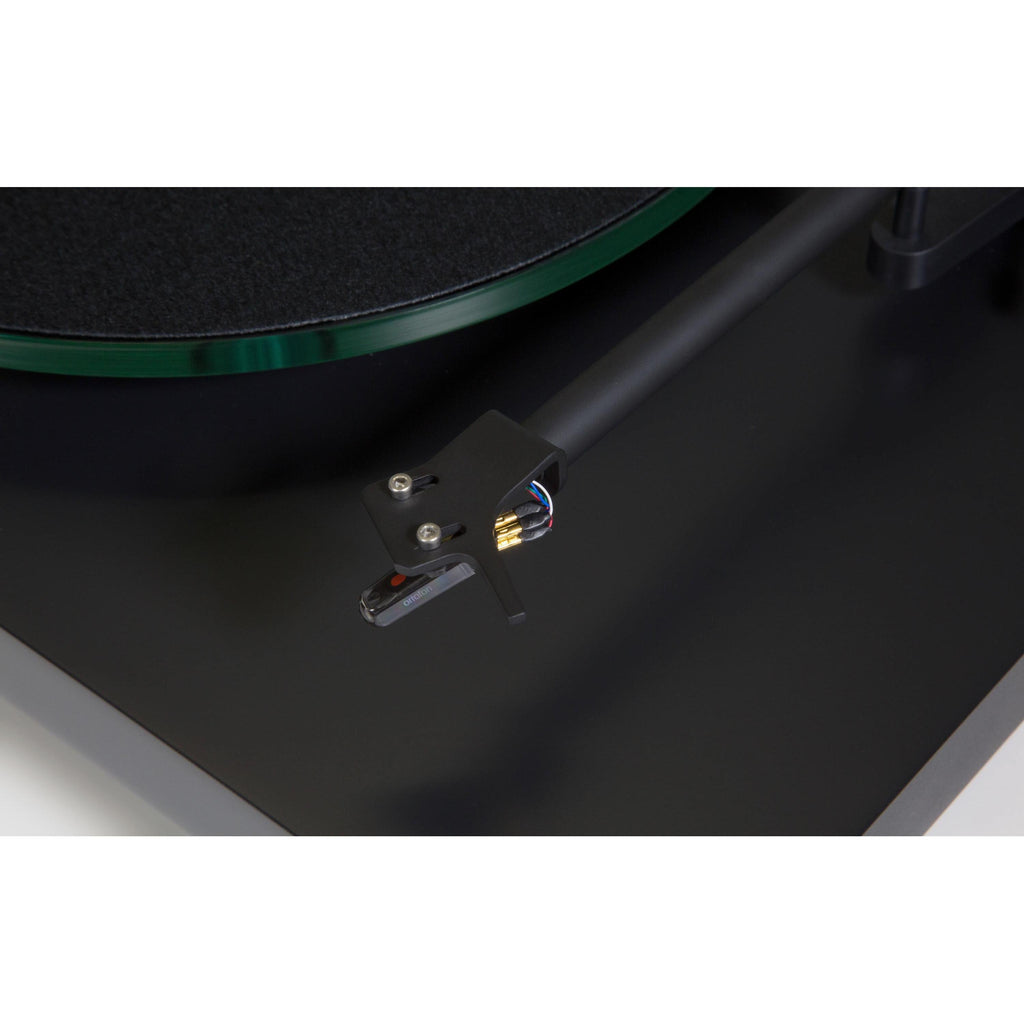

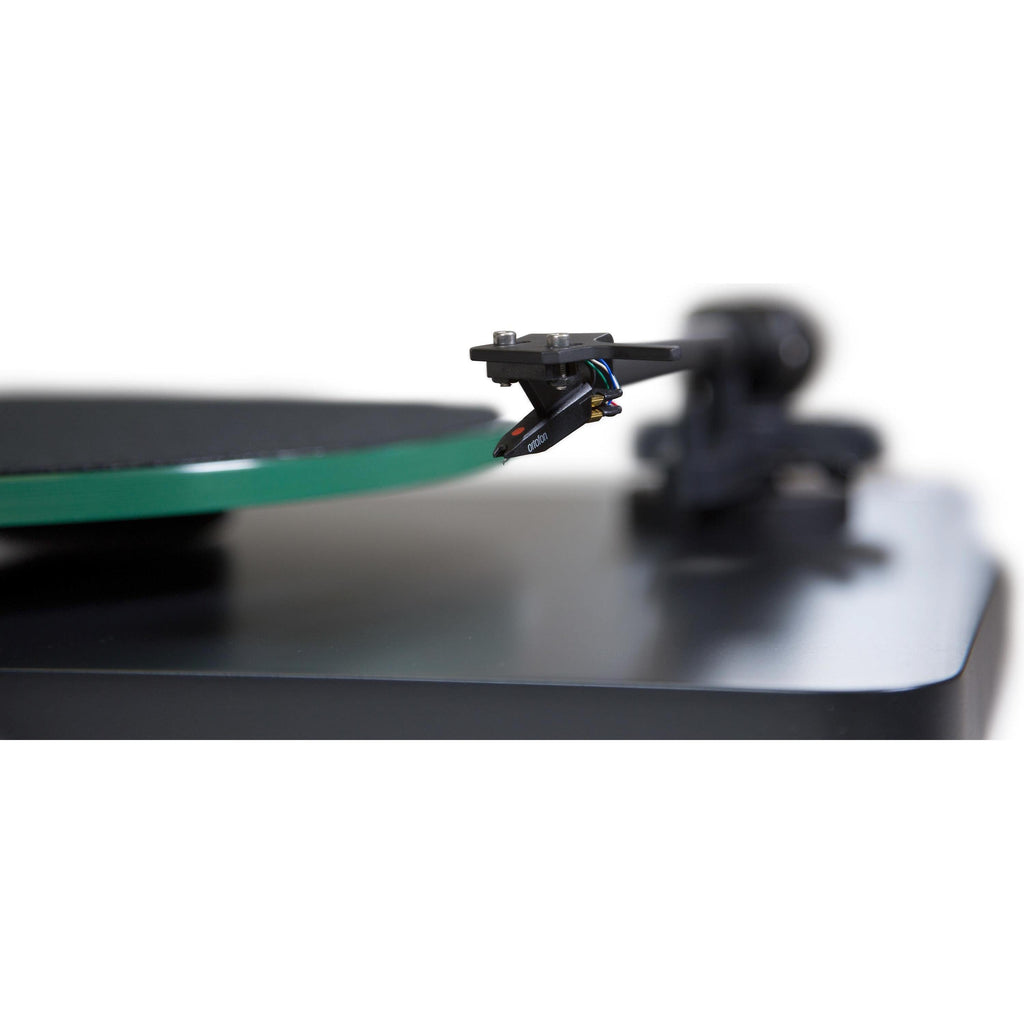

• The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilize the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.

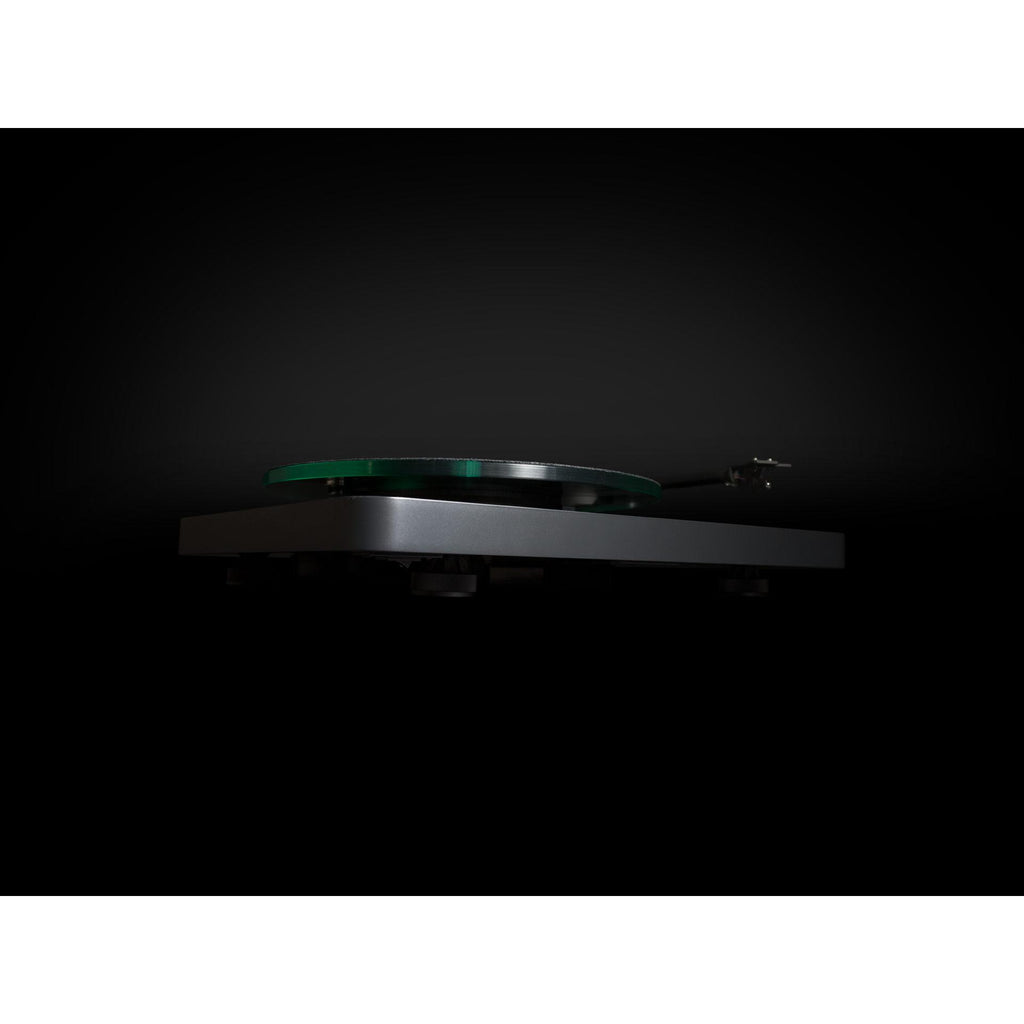

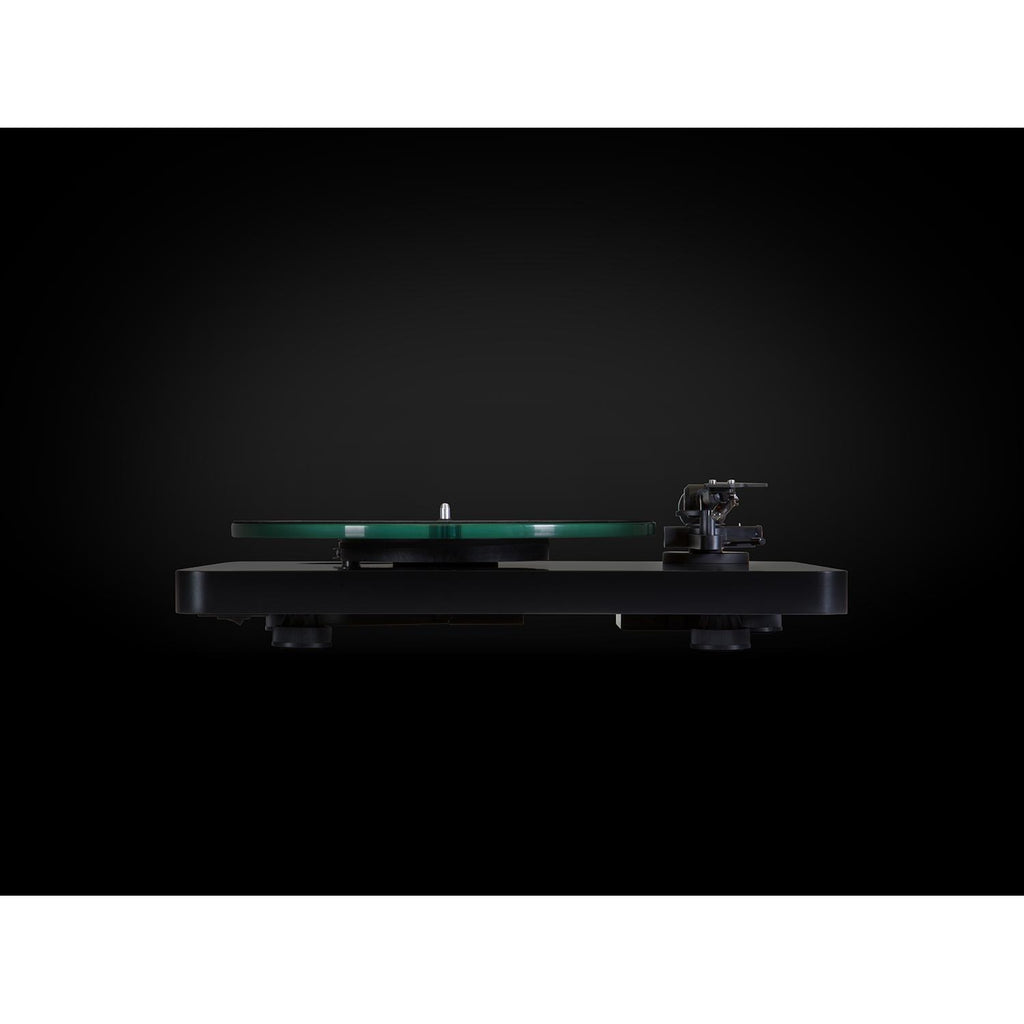

• The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.
Sophisticated Technology C558
Quality Parts and Materials C 558

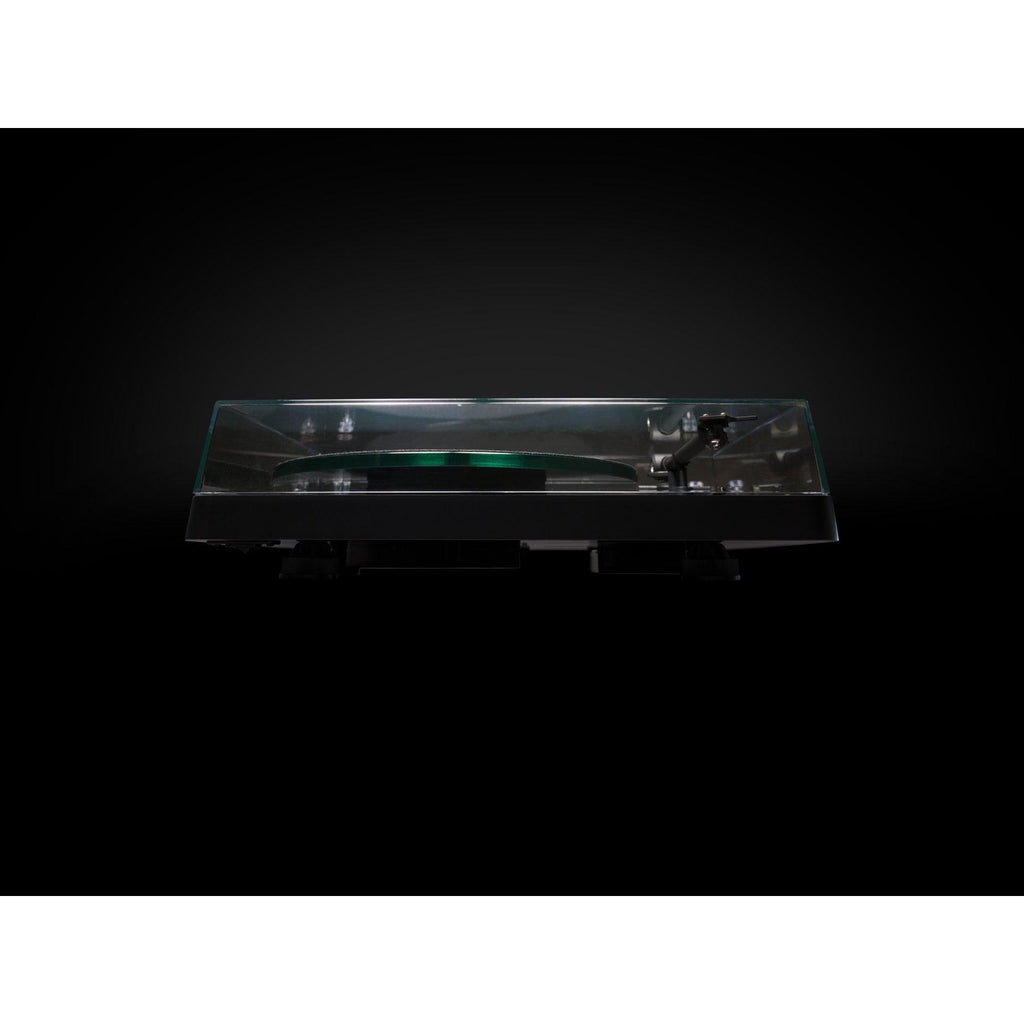

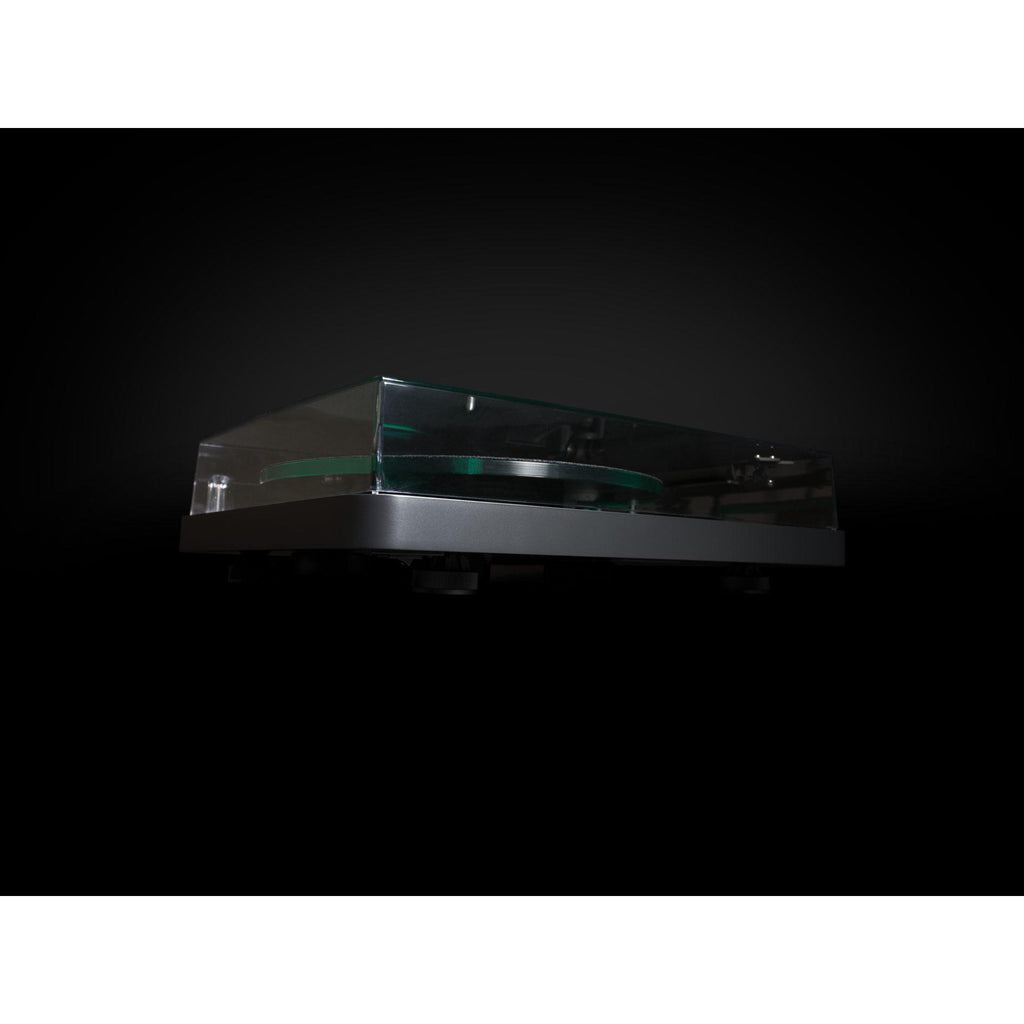

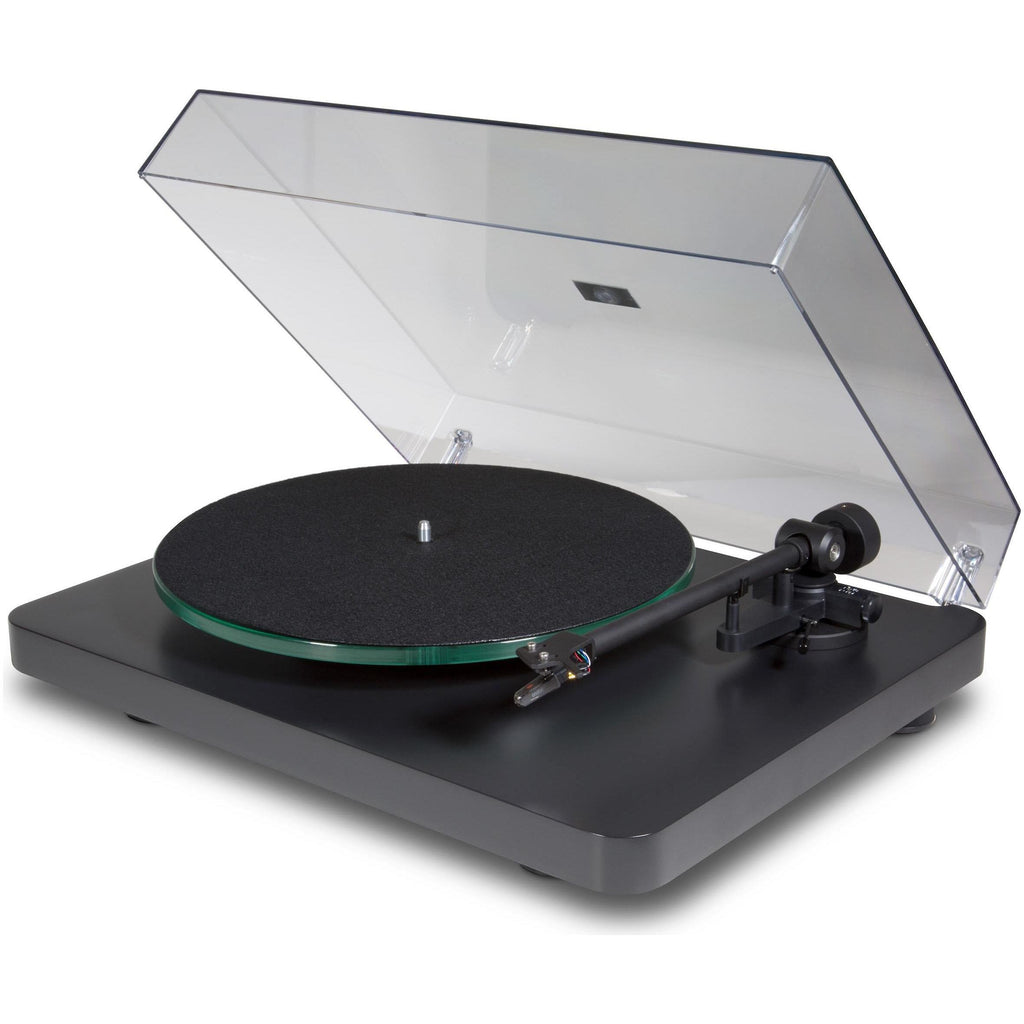

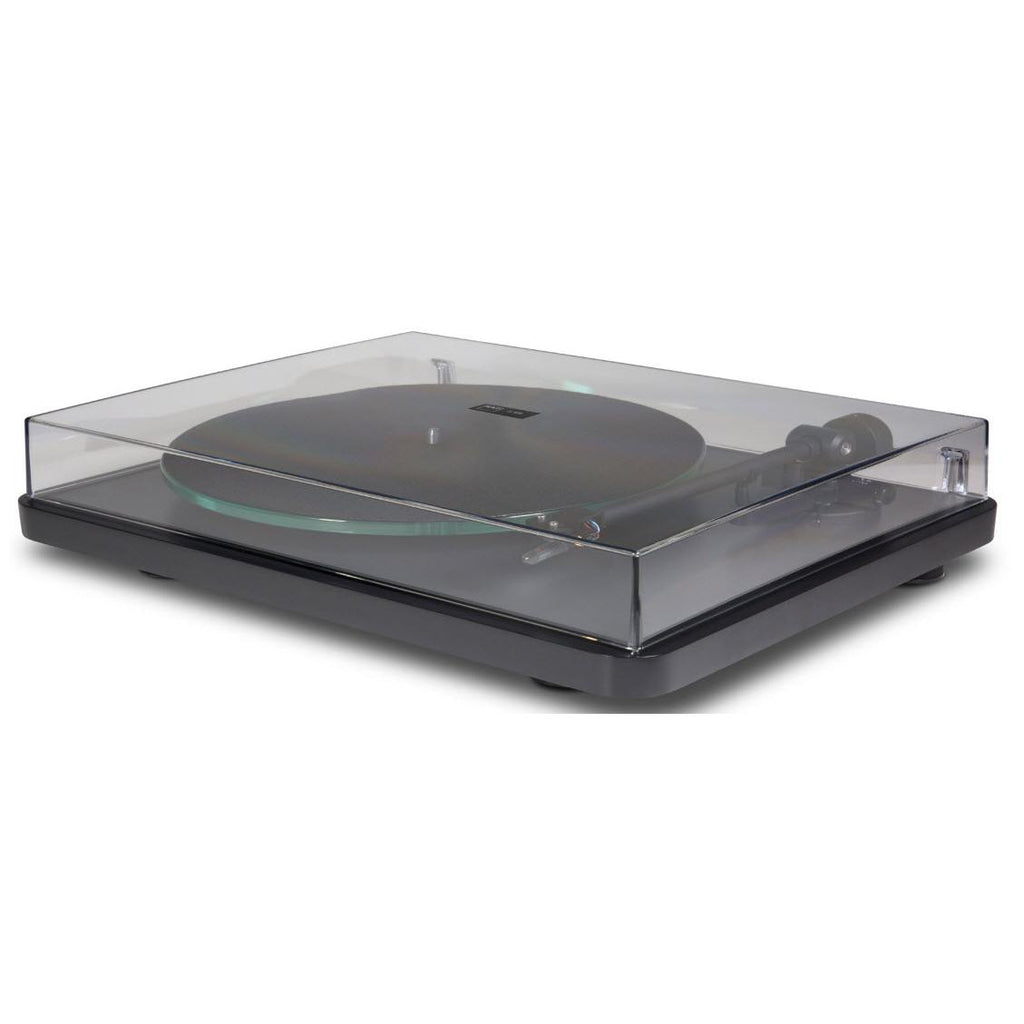

The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dustcover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.
Quality Parts and Materials C 558
An Experience Like No Other C 558
Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.
An Experience Like No Other C 558
Specifications
General
Color
Black
33.3 ppm Playback
Yes
45 rpm Playback
Yes
Features
Additional Information
• Belt Driven Turntable 33/45
• 10mm Glass Plater with Felt Pad
• u Precision AC Motor
• Isolated AC Power Supply with Universal Voltage
• 9" Tonearm with Fixed Head Shell
• Ortofon OM10 Cartridge Preinstalled
• Vertical Tracking Angle and
• Azimuth Adjustment
• Rigid MDF Plinth with Rubber
• Isolation Feet
• Low Resonance Dustcover

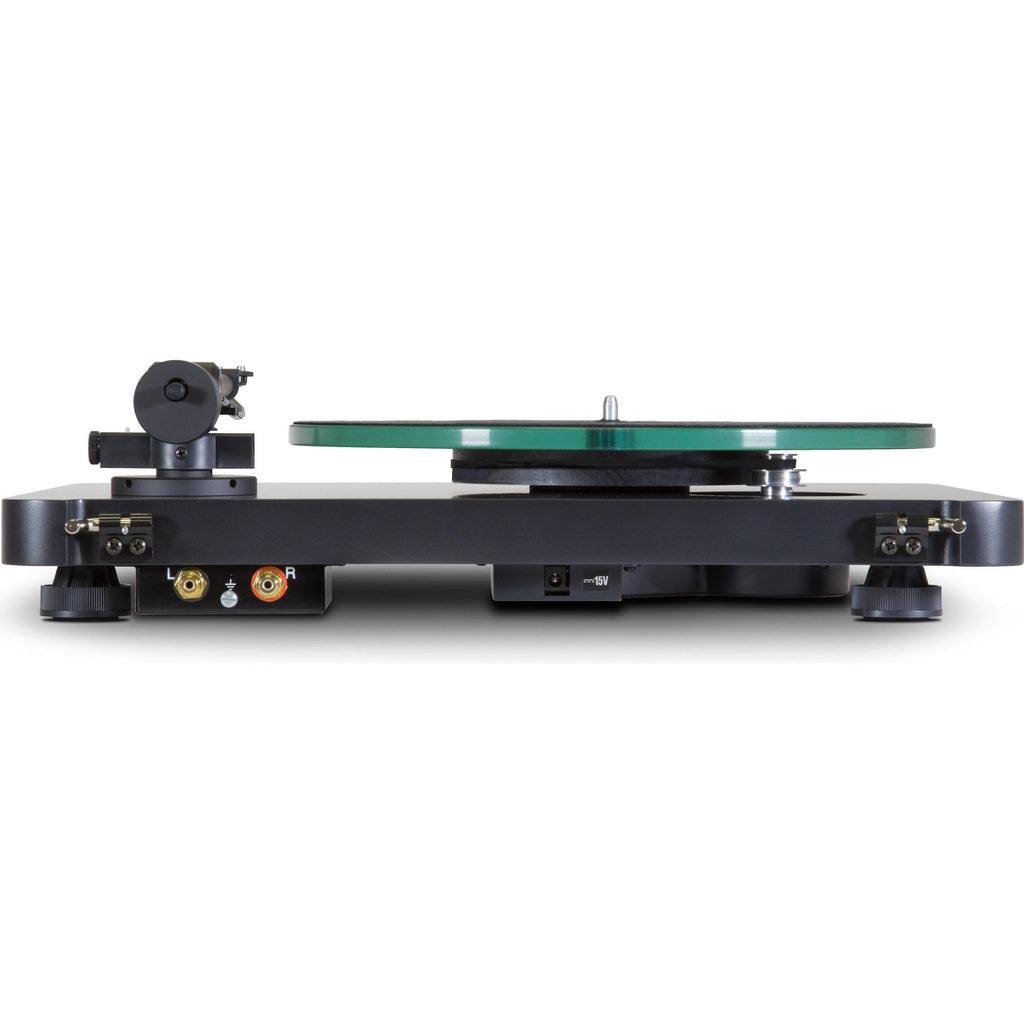

• Detachable High-Quality RCA Cable with separate Ground
• Speed variance: 33rpm: ± < 0.50%, 45rpm: ± < 0.45%
• Wow and flutter: 33rpm: ± < 0.15%, 45rpm: ± < 0.15%
• Signal to noise: S/N Ratio (mechanical noise): - 40 dB, S/N Ratio (electrical noise): -68 dB
• Frequency range: 20-22.000Hz
Dimensions
Width
17.13 inch(es) / 43.5 cm
Height
4.92 inch(es) / 12.5 cm
Depth
13.39 inch(es) / 34.0 cm
Weight
12.13 lb(s) / 5.5 kg
Shipping Dimensions
Weight
17.64 lb(s) / 8 kg
