Description

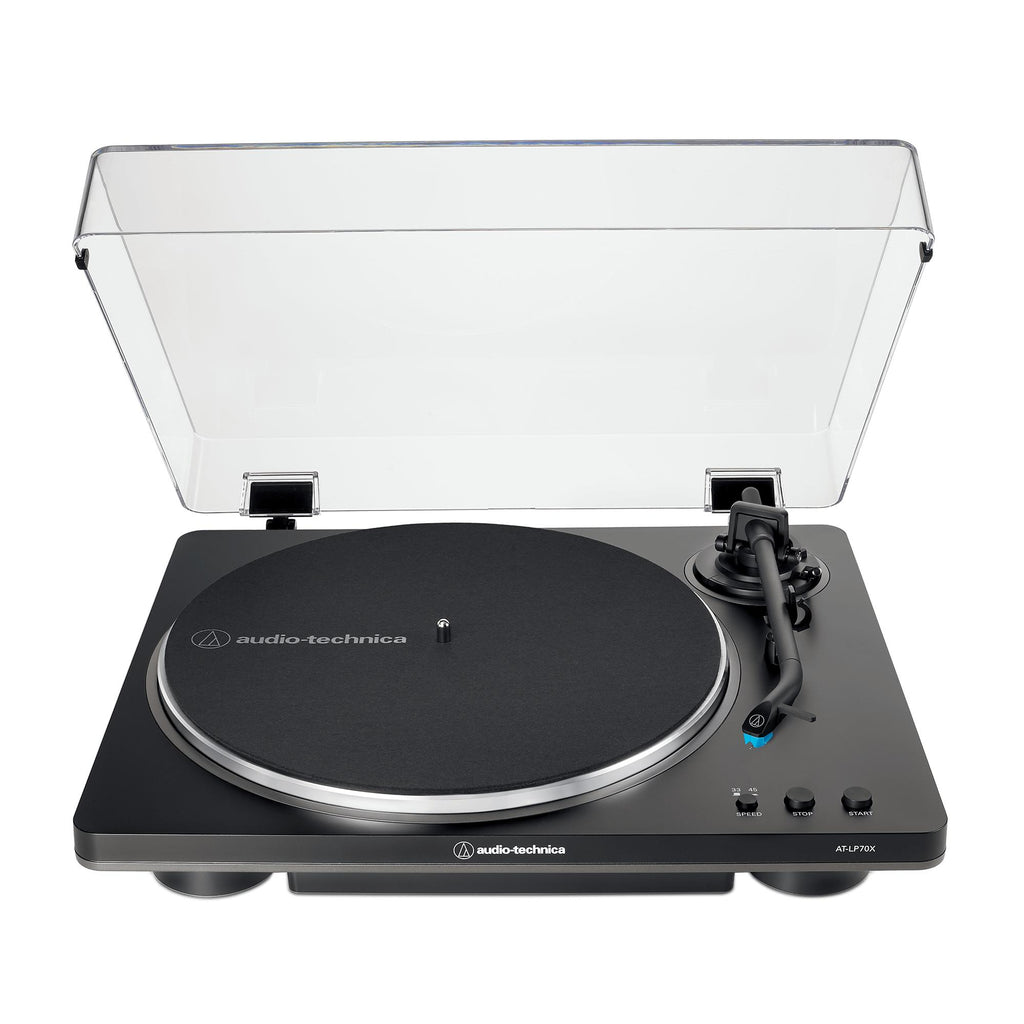

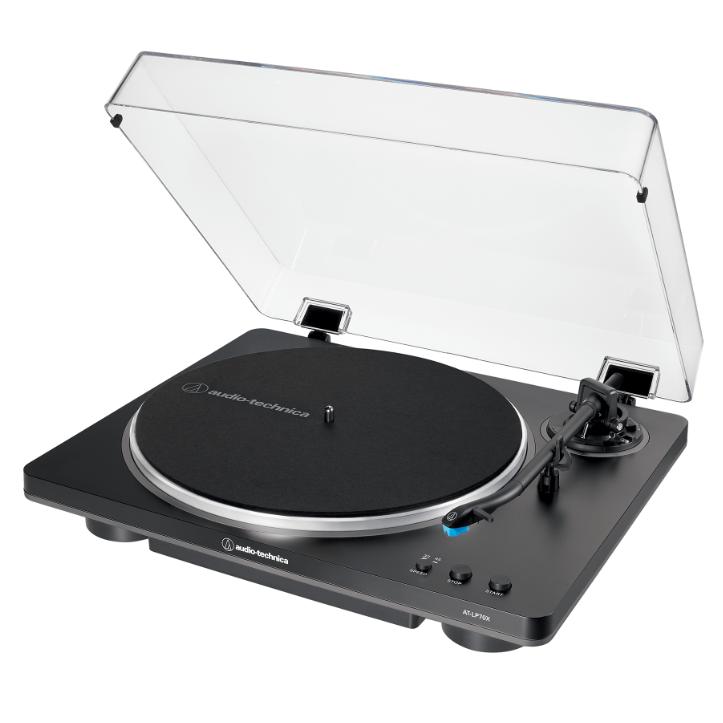

The AT-LP70X Fully Automatic Belt-Drive Turntable is the perfect beginner turntable for those beginning their audiophile journey. Designed to offer a quality sound experience for those who love listening to records, from flipping through albums at the record store to placing a record on the turntable, cueing the tonearm, and sitting back with the album art in hand to enjoy music as the artist intended. Combining the experience of warm, analog audio with user-friendly features, this turntable plays both 33-1/3 and 45 RPM records and has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.
Features
AT-VM95C Easy to Use
With its integrated AT-VM95C cartridge the turntable’s J-shaped tonearm requires no additional setup, such as balancing or cartridge installation. Simply select the speed you want (33? or 45 RPM) then press the Start and Stop buttons to control automatic operation or use the tonearm lift lever to play specific tracks on a record.
AT-VM95C Refine Your Sound
The turntable’s unique AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus (see list of styli further below ), making it easy not only to replace the stylus when needed but also upgrade to a higher-quality stylus to enjoy more refined sound.
Specifications
General
Color
Grey
33.3 ppm Playback
Yes
45 rpm Playback
Yes
Inputs/Outputs
RCA Outputs
Yes
Features
Dust Cover
Yes
Additional Information
• A fixed-body AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Stylish three-piece chassis construction dampens resonance for improved sound quality*
• J-shaped tonearm is engineered to minimize tracking errors
• Tonearm lock reduces risk of stylus damage
• Built-in switchable phono/line pre-amplifier
• Anti-resonance, die-cast aluminum platter with felt mat
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• DC motor
• Drive Method: Belt drive
• Turntable Platter: Die-cast aluminium
• Wow and Flutter: < 0.25% (WTD)
• Signal-to-Noise Ratio: > 55 dB
• Cartridge Type: This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.
• Output Level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec, LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• Power Consumption: 1.5 W
• Effective Arm Length: 220 mm (8.7")
• Overhang: 18 mm (0.71")
• Tracking Error Angle: Less than 2.0°
• Stylish three-piece chassis construction dampens resonance for improved sound quality*
• J-shaped tonearm is engineered to minimize tracking errors
• Tonearm lock reduces risk of stylus damage
• Built-in switchable phono/line pre-amplifier
• Anti-resonance, die-cast aluminum platter with felt mat
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• DC motor
• Drive Method: Belt drive
• Turntable Platter: Die-cast aluminium
• Wow and Flutter: < 0.25% (WTD)
• Signal-to-Noise Ratio: > 55 dB
• Cartridge Type: This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.
• Output Level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec, LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• Power Consumption: 1.5 W
• Effective Arm Length: 220 mm (8.7")
• Overhang: 18 mm (0.71")
• Tracking Error Angle: Less than 2.0°
Accessories
Included
• Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9'))
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9'))
Dimensions
Width
15.75 inch(es) / 40.0 cm
Height
4.33 inch(es) / 11.0 cm
Depth
12.99 inch(es) / 33.0 cm
Weight
6.39 lb(s) / 2.9 kg
UPC
UPC#
4961310162191
